Cat Food Making Machine

Lead Time: 15-25 days

Materials: stainless steel 304

Voltage: Customized, 110v-440v,50-60hz.

Core Components Brand:Siemens,Delta, Schneider, Baltur

Shipping: Support to sea freight, land and air freight

Service:

1 One year warranty, lifetime service

2 Local engineer on-site service available within 14 working days




  Contact Now
Product Details

Cat Food Making Machine


1.Introduction

The automatic canine food manufacturing line makes powdered raw materials together with corn flour into canine food through the manner of blending, extruding drying, flavoring and cooling. the equal production line can produce canine food of numerous sizes and styles. at the equal time, the identical dog meals can be matched with special system manufacturing traces in keeping with one in all a type capacity.


2.Production video

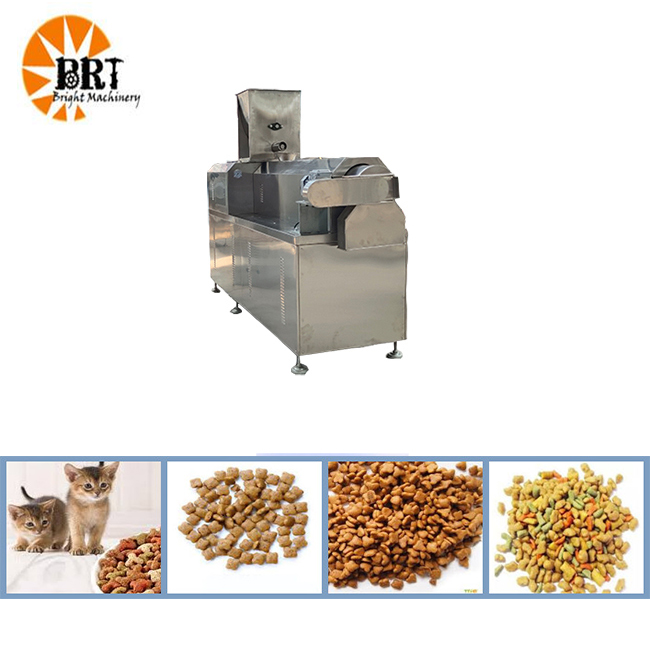

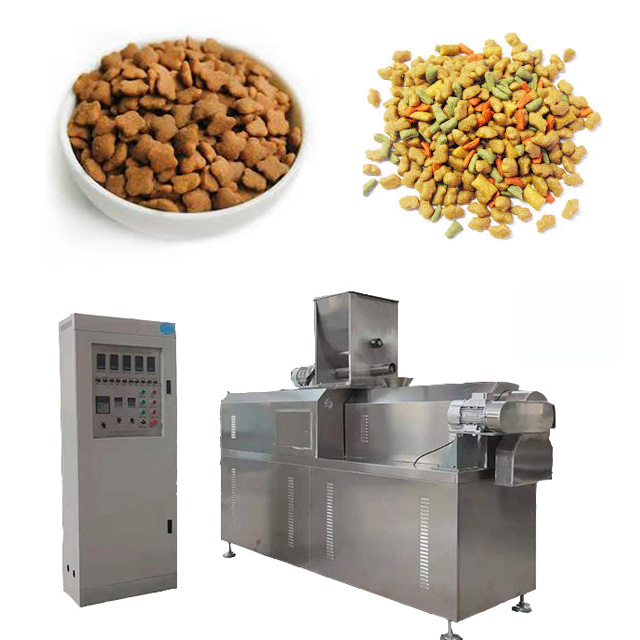

3.Machine display

Cat Food Making Machine


4.Samples

Cat Food Making MachineCat Food Making Machine  Cat Food Making MachineCat Food Making Machine


Cat Food Making Machine Cat Food Making Machine  Cat Food Making MachineCat Food Making Machine


5.Technical parameter

Model

Install power(kw)

Actuall consumption(kw)

Capacity

Size(mm)

DSE-65 production line

80

56-64

100-150 kg/h

21000*1500*3000

DSE-70 production line

116

82-93

200-250 kg/h

21000*1500*3000

DSE-75 production line

154

108-123

300-350 kg/h

25000*1500*3200

DSE-85 production line

194

137-156

400-500 kg/h

25000*1500*3200

DSE-85S production line

121(Steam dryer)

85-97

600-800 kg/h

28000*1500*3500

DSE-95S production line

165(Steam dryer)

115-132

1000-1800 kg/h

28000*1500*3500

DSE-95S-2 production line

295(Steam dryer)

206-236

2000-3000 kg/h

25000*20000*6000

DSE-95S-3 production line

375(Steam dryer)

263-300

3000-4000 kg/h

25000*20000*13000

DSE-95S-4 production line

496(Steam dryer)

347-397

4000-5000 kg/h

30000*25000*16000

DSE-130S production line

540(Steam dryer)

380-432

5000-6000 kg/h

30000*30000*16000

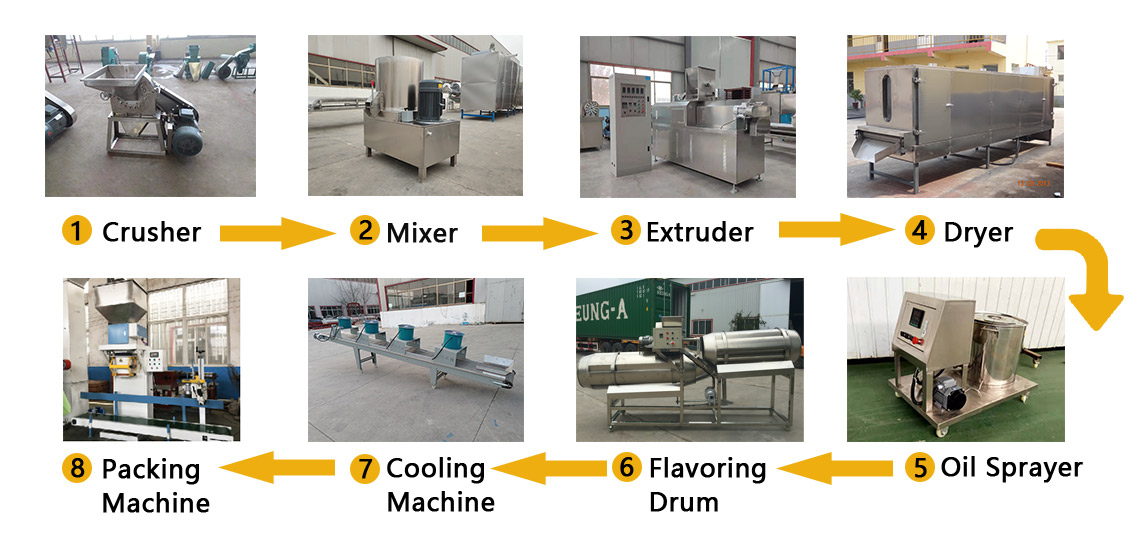

6.Flow chart

Mixer→Screw Conveyor→Extruder→Air Conveyor→Dryer→Hoister→Flavoring System→Cooling Conveyor

Cat Food Making Machine


7.Product advantages

1.Adopt Siemens main motor, Delta inverter, Schneider Omron ABB electrical components, the world's top brands, efficient and stable operation, reliable quality, durable, global accessories, can be directly purchased locally, effectively reducing production cost.



Cat Food Making Machine Cat Food Making Machine  Cat Food Making Machine  Cat Food Making Machine


2.The screw material is high-speed alloy steel, carburized, with hardness up to HRC 55-65, high wear resistance, high hardness, good toughness, optional 38CrMoAl, 12CrMoV, W6Mo5Cr4V2 material, long service life. Some models are equipped with a combination screw, which has wider applicability of raw materials. The screw combination method can be adjusted according to different products, and one machine can be used for multiple purposes.


Cat Food Making Machine Cat Food Making Machine Cat Food Making Machine Cat Food Making Machine


3.The main motor, rotary cutting motor and feeding motor are all controlled by frequency conversion, which can realize soft start and effectively protect the motor, and can adjust the speed according to the product status to produce higher quality products; equipped with PLC touch screen control system, equipment temperature and The speed adjustment is more digital and the control is more precise.


Cat Food Making Machine   Cat Food Making Machine  Cat Food Making Machine Cat Food Making Machine


4.Using a new type of box, the box material QT400, good stability. Gear material 20CrNiMoA, carburizing and quenching, hardness HRC58-62, high precision, low noise, long service life; using Japanese NSK, SKF bearings, high precision, long life, stable performance; oil pump motor, forced internal circulation lubrication; condenser, lower The surface temperature of gears and bearings increases the service life; the filter cleans the impurities in the oil, improves the lubrication effect and prolongs the service life.


Cat Food Making Machine Cat Food Making Machine   Cat Food Making Machine Cat Food Making Machine

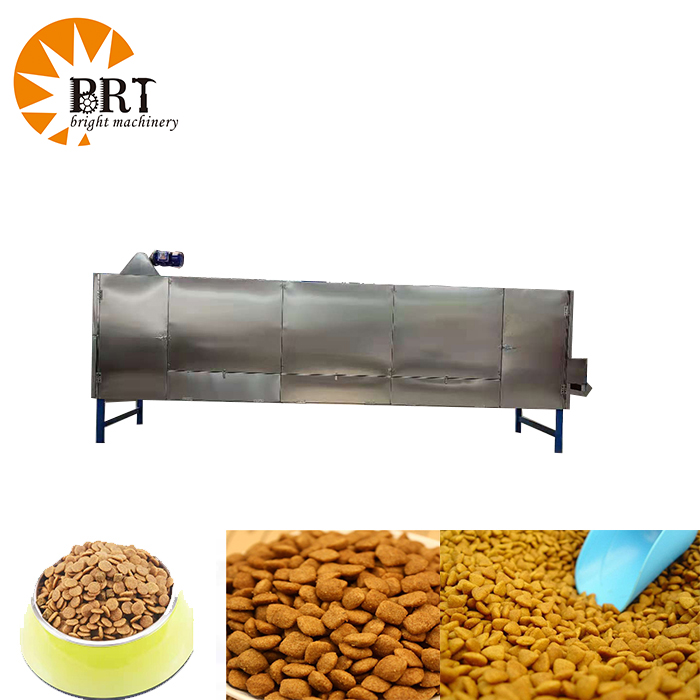

5.According to the actual situation, different energy sources, electricity, fuel oil, gas, steam can be used to save production costs; equipped with circulating fans and dehumidification fans to promote heat circulation, remove water vapor, and improve drying efficiency; 304 stainless steel mesh cloth and mesh are used. belt to ensure product quality; adjustable running speed, adjust drying time according to different products, high efficiency.


Cat Food Making Machine Cat Food Making Machine Cat Food Making Machine Cat Food Making Machine
