Core Filling Snack Making Machine

Lead Time: 15-25 days

Materials: stainless steel 304

Voltage: Customized, 110v-440v,50-60hz.

Core Components Brand: Siemens,Delta, Schneider, Baltur

Shipping: Support to sea freight, land and air freight

Service:

1 One year warranty, lifetime service

2 Local engineer on-site service available within 14 working days


  Contact Now
Product Details

Core Filling Snack Making Machine


1.Introduction

The automated core filling snack manufacturing line makes powdered uncooked materials together with corn flour intocore filling snack thru the manner of blending,puffing,filling,reducing,drying,flavoring and cooling. the equal manufacturing line can produce core filling snacks of various sizes and styles. at the equal time, the identical middle filling snack may be matched with exceptional system manufacturing lines in line with unique potential.


2.Production video

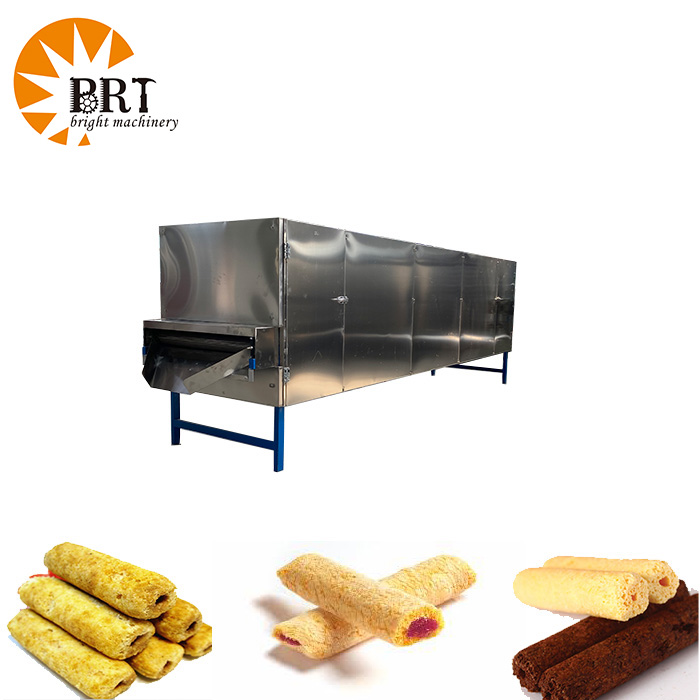

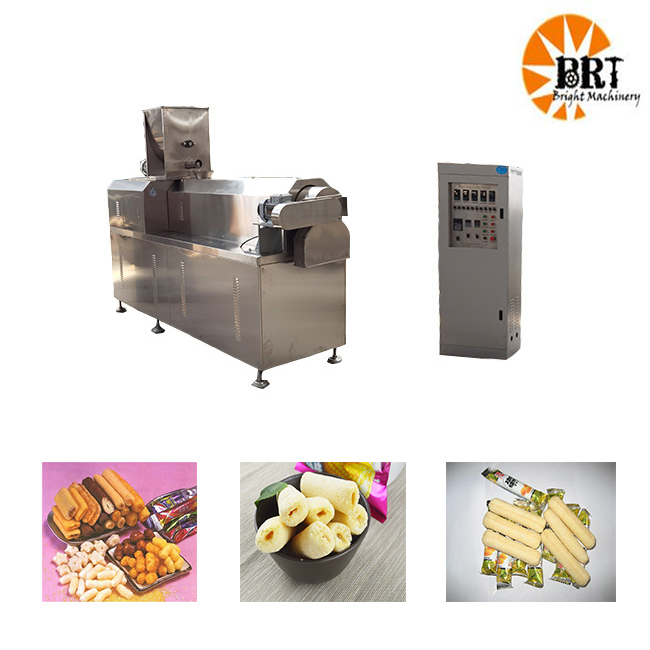

3.Machine display

Core Filling Snack Making Machine


4.Samples

Core Filling Snack Making MachineCore Filling Snack Making Machine Core Filling Snack Making MachineCore Filling Snack Making Machine


Core Filling Snack Making MachineCore Filling Snack Making Machine Core Filling Snack Making MachineCore Filling Snack Making Machine


5.Technical parameter

Model

Capacity/output

Installed Power

Power Consumption

Dimension

DSE65 Core Filling Snack Production Line

100-150kg/h

120kw

96kw

26*3*2.2m

DSE65F Core Filling Snack Production Line

100-150kg/h

124kw

100kw

26*3*2.2m

DSE70 Core Filling Snack Production Line

200-250kg/h

164kw

132kw

28*3*2.2m

DSE70F Core Filling Snack Production Line

200-250kg/h

130kw

104kw

26*3*2.2m

DSE85 Core Filling Snack Production Line

300-500kg/h

270kw

216kw

32*3*2.2m


6.Flow chart

Mixer→Screw Conveyor→Extruder→Core Filling Machine→Cutter→Hoister→Dryer→Hoister→Flavoring System→Cooling Conveyor

Core Filling Snack Making Machine


7.Product advantages

1.Adopt Siemens main motor, Delta inverter, Schneider Omron ABB electrical components, the world's top brands, efficient and stable operation, reliable quality, durable, global accessories, can be directly purchased locally, effectively reducing production cost.


Core Filling Snack Making Machine Core Filling Snack Making Machine Core Filling Snack Making Machine Core Filling Snack Making Machine


2.The screw material is high-speed alloy steel, carburized, with hardness up to HRC 55-65, high wear resistance, high hardness, good toughness, optional 38CrMoAl, 12CrMoV, W6Mo5Cr4V2 material, long service life. Some models are equipped with a combination screw, which has wider applicability of raw materials. The screw combination method can be adjusted according to different products, and one machine can be used for multiple purposes.


Core Filling Snack Making Machine Core Filling Snack Making Machine Core Filling Snack Making Machine Core Filling Snack Making Machine


3.The main motor, rotary cutting motor and feeding motor are all controlled by frequency conversion, which can realize soft start and effectively protect the motor, and can adjust the speed according to the product status to produce higher quality products; equipped with PLC touch screen control system, equipment temperature and The speed adjustment is more digital and the control is more precise.


Core Filling Snack Making Machine Core Filling Snack Making Machine Core Filling Snack Making Machine Core Filling Snack Making Machine


4.Using a new type of box, the box material QT400, good stability. Gear material 20CrNiMoA, carburizing and quenching, hardness HRC58-62, high precision, low noise, long service life; using Japanese NSK, SKF bearings, high precision, long life, stable performance; oil pump motor, forced internal circulation lubrication; condenser, lower The surface temperature of gears and bearings increases the service life; the filter cleans the impurities in the oil, improves the lubrication effect and prolongs the service life.


Core Filling Snack Making Machine Core Filling Snack Making Machine Core Filling Snack Making Machine Core Filling Snack Making Machine


5.According to the actual situation, different energy sources, electricity, fuel oil, gas, steam can be used to save production costs; equipped with circulating fans and dehumidification fans to promote heat circulation, remove water vapor, and improve drying efficiency; 304 stainless steel mesh cloth and mesh are used. belt to ensure product quality; adjustable running speed, adjust drying time according to different products, high efficiency.


Core Filling Snack Making Machine Core Filling Snack Making Machine Core Filling Snack Making Machine Core Filling Snack Making Machine
