Big Capacity Dog Food Extruder

Lead Time: 15-25 days

Materials: carbon steel

Voltage: Customized, 110v-440v,50-60hz.

Core Components Brand: Siemens,Delta, Schneider, Baltur

Shipping: Support to sea freight, land and air freight

Service:

1 One year warranty, lifetime service

2 Local engineer on-site service available within 14 working days


  Contact Now
Product Details

Big Capacity Dog Food Extruder


1.Introduction

Mainly used in the production and processing of various floating and sinkingfeeds, specially appropriate for the manufacturing of various floating aquatic feeds, and additionally extensively used in the production and processing of pet food.


2.Production Video

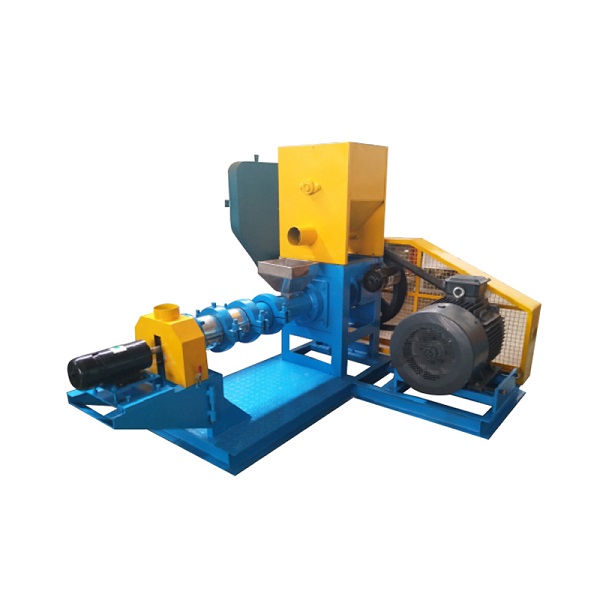

3.Machine display

Big Capacity Dog Food Extruder Big Capacity Dog Food Extruder  Big Capacity Dog Food Extruder Big Capacity Dog Food Extruder


Big Capacity Dog Food Extruder Big Capacity Dog Food Extruder  Big Capacity Dog Food Extruder Big Capacity Dog Food Extruder


4.Samples

Dog Food Production LineDog Food Production Line Dog Food Production LineDog Food Production Line


Dog Food Production LineDog Food Production Line Dog Food Production LineDog Food Production Line


5.Technical parameter

Model

Capacity/output

Main Motor

Feeder Motor

Screw Diameter

Cutter Motor

Dimension

BRT40

40-50kg/h

5.5kw

(220V)

0.4kw

Φ40

0.4kw

1.36*1.60*0.85m

BRT60

100-150kg/h

15kw

0.4kw

Φ60

0.4kw

1.36*1.67*0.85m

BRT70

180-250kg/h

18.5kw

0.4kw

Φ70

0.4kw

1.36*1.67*0.85m

BRT80

250-300kg/h

22kw

1.5kw

Φ80

0.75kw

1.36*1.95*0.84m

BRT90

300-400kg/h

30kw

1.5kw

Φ90

1.5kw

1.8*2.6*1.15m

BRT100

400-500kg/h

30kw

1.5kw

Φ100

1.5kw

1.8*2.6*1.15m

BRT120

600-700kg/h

55kw

1.5kw

Φ120

2.2kw

2.2*2.8*1.2m

BRT135

750-800kg/h

75kw

1.5kw

Φ135

2.2kw

2.2*2.8*1.2m

BRT160

1000-1200kg/h

90kw

1.5kw

Φ160

2.2kw

2.3*3.0*1.2m


6.Flow chart

Mixer→Screw Conveyor→Single Screw Extruder→Air Conveyor→Dryer→Air Conveyor→Flavoring System

Big Capacity Dog Food Extruder


7.Product advantages

•Maturation: The material is fully matured in about 10 seconds, and the puffing temperature varies depending on the raw material, generally ranging from 120°C to 175°C. Maturation can destroy growth inhibitors in a very short period of time and complete the processing under anaerobic conditions, which helps to preserve the content of protein, energy and vitamins, and can also reduce the browning of the product due to oxidation; it can improve the digestibility and palatability of the product.


Big Capacity Dog Food Extruder  Big Capacity Dog Food Extruder


• Puffing and molding: The raw material is suddenly reduced in pressure after continuous high pressure, which can cause the gelatinization of starch cells and the rupture of oil cells, and can be processed into the required product status;


Big Capacity Dog Food Extruder


• Dehydration: When the extruded material leaves the feed pellet extruder, due to the high temperature and high pressure in the cavity, the internal moisture immediately evaporates (flash), which is very beneficial for storage;


Big Capacity Dog Food Extruder  Big Capacity Dog Food Extruder


• Enhanced stability: The high temperature and high pressure in the puffing cavity can passivate the enzymes that cause spoilage in the material, avoiding the rapid destruction of nutrients in the material in the short term, and can enhance the stability of the product storage process;


Big Capacity Dog Food Extruder


 Significant benefits: Studies by domestic and foreign breeding experts have shown that compared with pelleted feed, the feed-to-meat ratio can be reduced by 8-10%, which will reduce feeding costs, shorten fattening time, and improve economic benefits.


Big Capacity Dog Food Extruder  Big Capacity Dog Food Extruder  Big Capacity Dog Food Extruder  Big Capacity Dog Food Extruder
