Doritos Chips Making Machine

Lead Time: 15-25 days

Materials: stainless steel 304

Voltage: Customized, 110v-440v,50-60hz.

Core Components Brand: Siemens,Delta, Schneider, Baltur

Shipping: Support to sea freight, land and air freight

Service:

1 One year warranty, lifetime service

2 Local engineer on-site service available within 14 working days


  Contact Now
Product Details

Doritos Chips Production Line


1.Introduction

The Nachos/Doritos/Tortilla production line is made of corn flour after extrusion, molding and frying. Its main ingredients are corn meal, water, vegetable oil and salt. After frying, spray on the surface with a variety of flavoring powder. Because of its crisp and delicious, it is loved by children and adults.The production line is equipped with world-renowned electrical parts and frequency converters, which are safe and reliable


2.Production Video

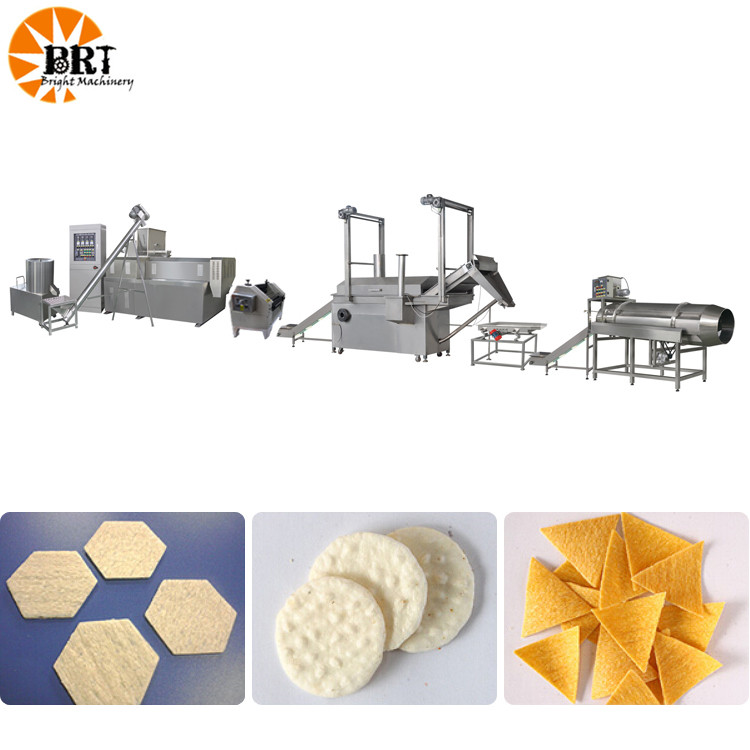

3.Machine Display

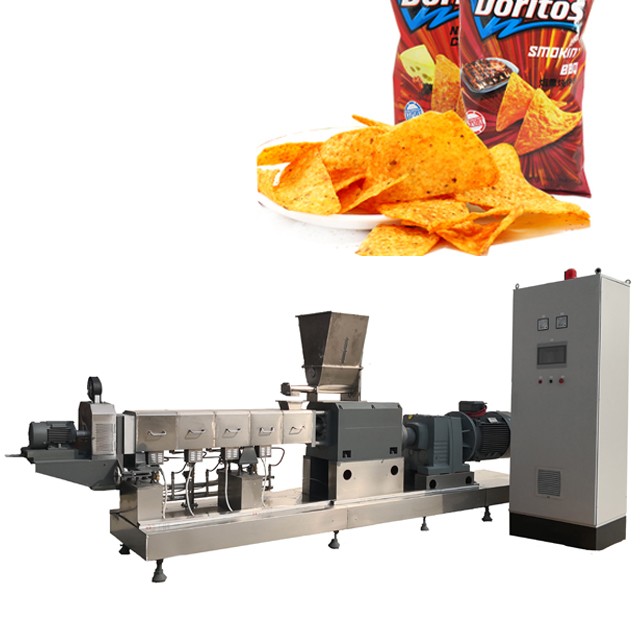

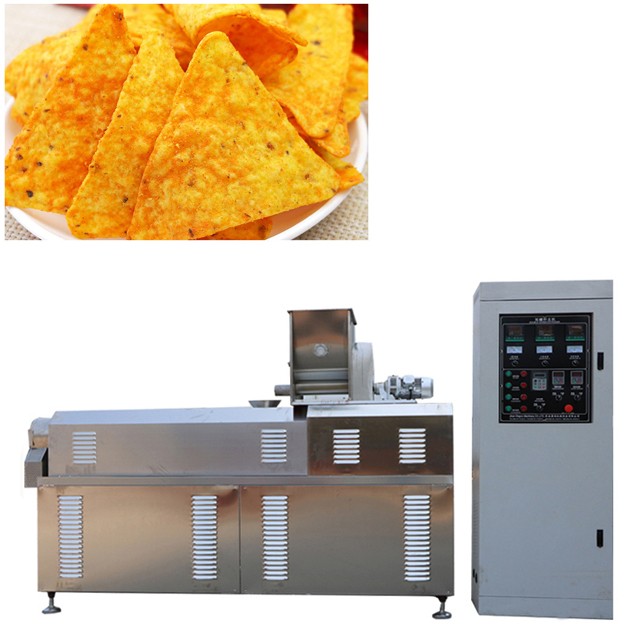

Doritos Chips Making Machine

4.Samples

Doritos Chips Production Line Doritos Chips Production Line Doritos Chips Production Line Doritos Chips Production Line


Doritos Chips Production Line Doritos Chips Production Line Doritos Chips Production Line Doritos Chips Production Line


5.Technical Parameter

Model

Capacity/output

Installed Power

Power Consumption

Dimension

DSE65 Doritos Snack Production Line

100-150kg/h

120kw

96kw

26*3*2.2m

DSE65F Doritos Snack Production Line

100-150kg/h

124kw

100kw

26*3*2.2m

DSE70 Doritos Snack Production Line

200-250kg/h

164kw

132kw

28*3*2.2m

DSE70F Doritos Snack Production Line

200-250kg/h

130kw

104kw

26*3*2.2m

DSE85 Doritos Snack Production Line

300-500kg/h

270kw

216kw

32*3*2.2m

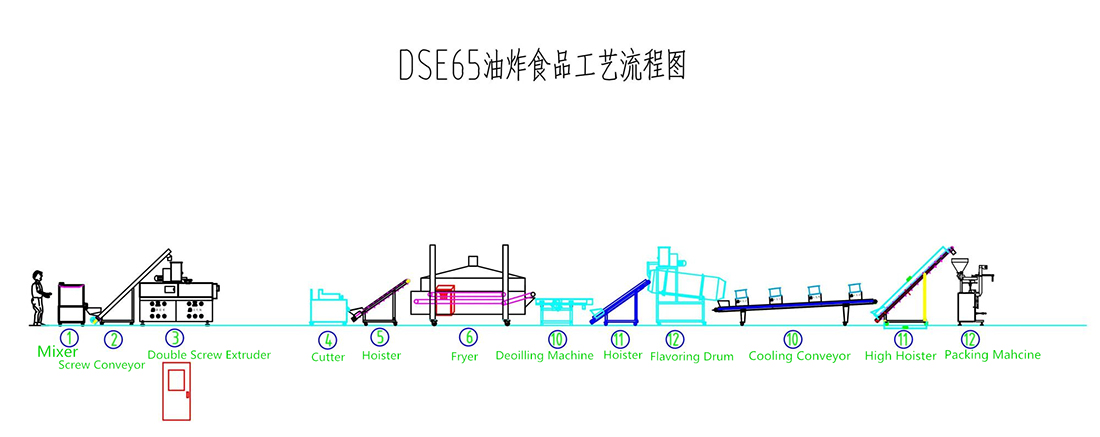

6.Flow Chart

Mixer→Screw Conveyor→Extruder→Cutter→Hoister→Fryer→Deoilling Machine→Hoister→Flavoring Drum→Cooling Conveyor→Hoister→Packing Machine

Doritos Chips Production Line


7.Product Advantages

1 Adopt Siemens main motor, Delta frequency control converter, Schneider Omron ABB electrical components, the world's top brands, efficient and stable operation, reliable quality, durable, global accessories, can be directly purchased locally, effectively reducing production cost


Doritos Chips Production Line Doritos Chips Production Line Doritos Chips Production Line Doritos Chips Production Line


2. The screw material is high-speed alloy steel, carburized, with hardness up to HRC 55-65, high wear resistance, high hardness, good toughness, optional 38CrMoAl, 12CrMoV, W6Mo5Cr4V2 material, long service life. Some models are equipped with a combination screw, which has wider applicability of raw materials. The screw combination method can be adjusted according to different products, and one machine can be used for multiple purposes.


Doritos Chips Production Line Doritos Chips Production Line Doritos Chips Production Line Doritos Chips Production Line


3 The main motor, rotary cutting motor and feeding motor are all controlled by frequency conversion, which can realize soft start and effectively protect the motor, and can adjust the speed according to the product status to produce higher quality products; equipped with PLC touch screen control system, equipment temperature and The speed adjustment is more digital and the control is more precise.


Doritos Chips Production Line Doritos Chips Production Line Doritos Chips Production Line Doritos Chips Production Line


4 Using a new type of box, the box material QT400, good stability. Gear material 20CrNiMoA, carburizing and quenching, hardness HRC58-62, high precision, low noise, long service life; using Japanese NSK, SKF bearings, high precision, long life, stable performance; oil pump motor, forced internal circulation lubrication; condenser, lower The surface temperature of gears and bearings increases the service life; the filter cleans the impurities in the oil, improves the lubrication effect and prolongs the service life


Doritos Chips Production Line Doritos Chips Production Line Doritos Chips Production Line Doritos Chips Production Line


5.The fried food is equipped with a fryer for curing, equipped with an oil filter system to keep the oil clean, ensure product quality and reduce production costs; it is equipped with an oil storage tank, automatic oil replenishment, and internal heating to ensure stable oil temperature and better finished product effect. ; Zone heating, adjustable heating temperature to meet the needs of different types of products for frying


Doritos Chips Production Line Doritos Chips Production Line Doritos Chips Production Line Doritos Chips Production Line
