Sinking Fish Feed Machine

Sinking Fish Feed Machine

1.Introduction

The forms of fish feed have gone thru a way from raw to cooked, from shallow processing to deep processing, from the unique fish and shrimp beaten right now to feeding, to the later matured pellet feeding, to the present day nutrient ratio medical feeding. the extruded fish feed machinery and machine production line specializes in the production of severa kinds and specs of extruded aquatic fish feed for small and medium aquaculture farms and individual fisheries. the output of our fish feed machine is 100 kg consistent with hour -10 masses in step with hour, divided into different device configurations. high-protein extruded feed pellets, immoderate protein content material, fish develop rapid, absorb properly, and the degree of feed waste is low, and fish excretion has a whole lot much less harm to water satisfactory, and may be recycled and used to expand ecological agriculture. it's far a effective tool and means for sustainable fishery development.

2.Production Video

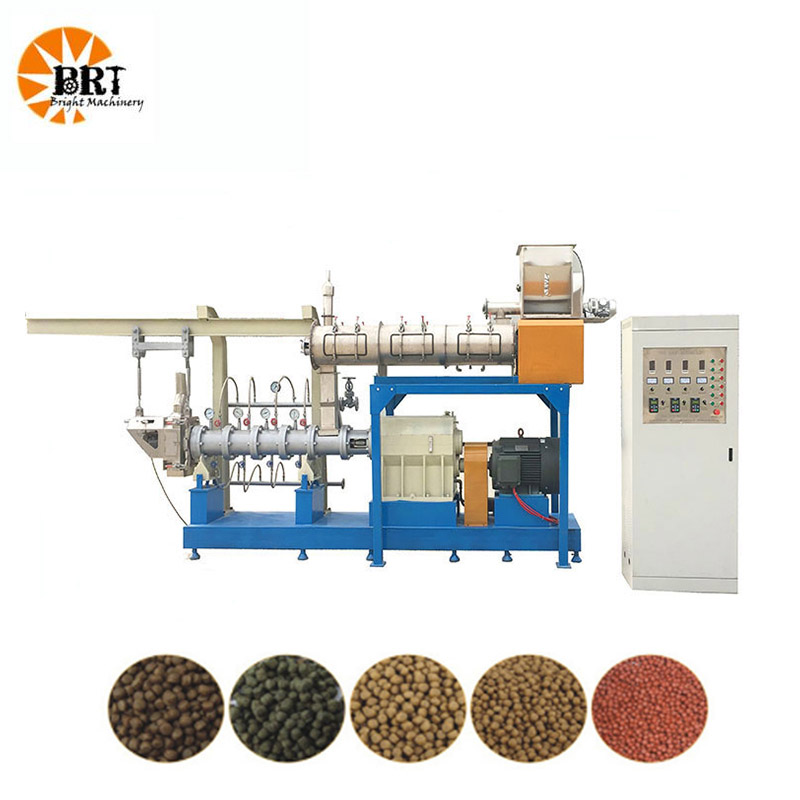

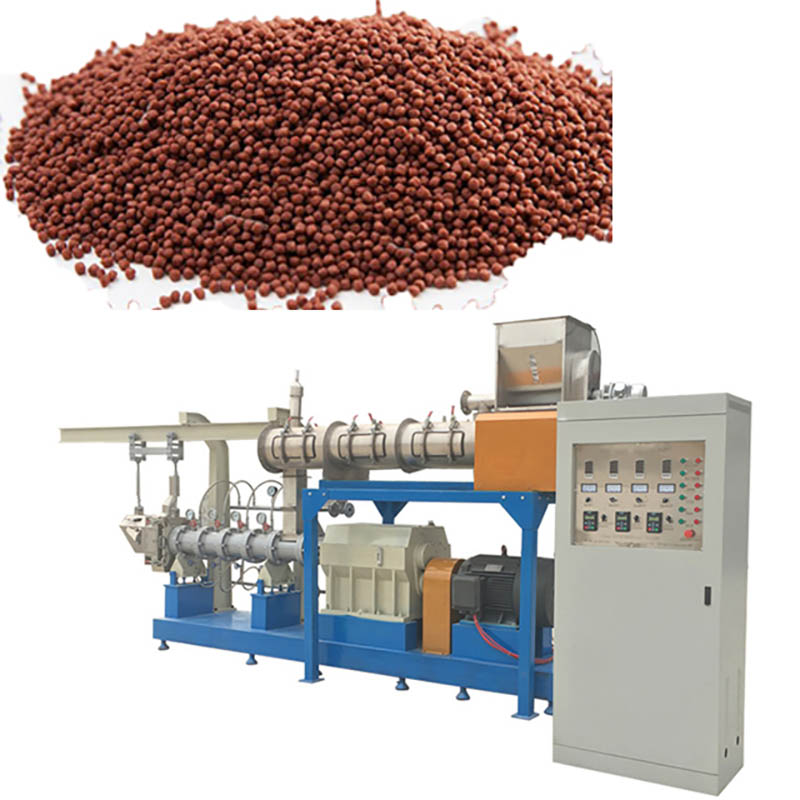

3.Machine Display

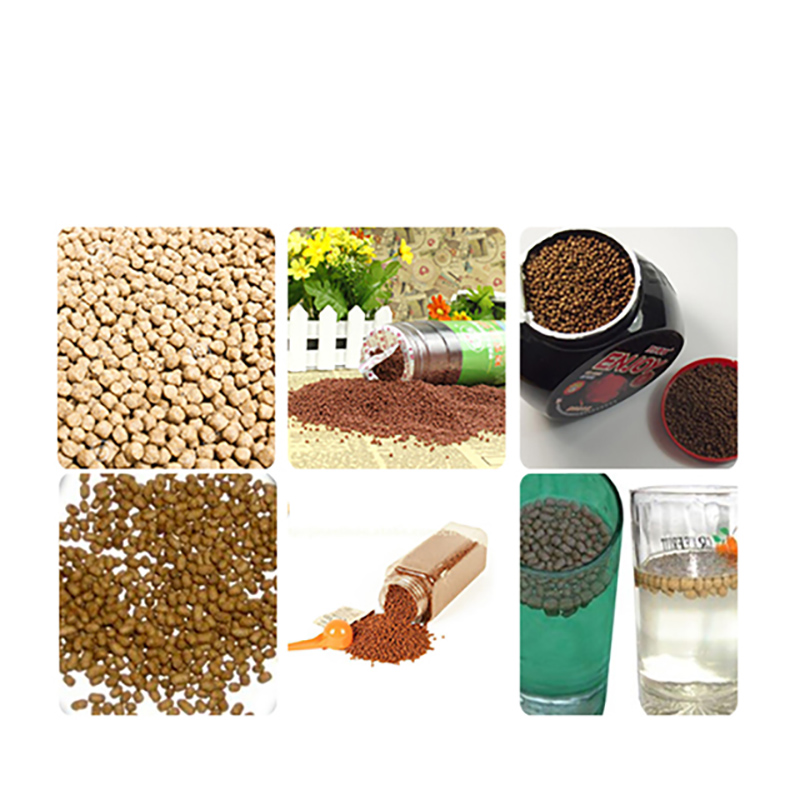

4.Samples

5.Technical Parameter

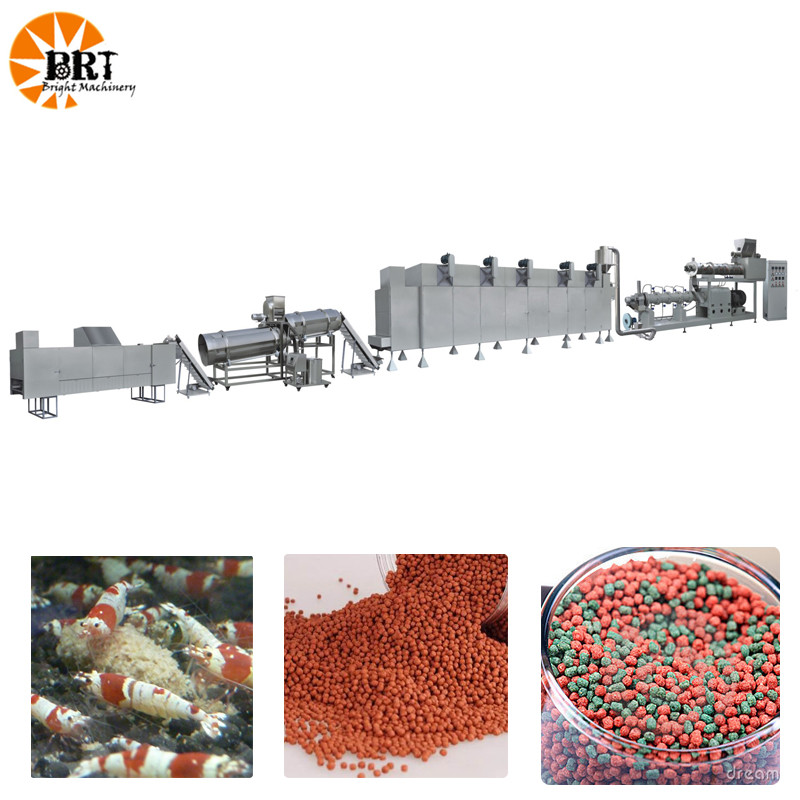

6.Flow Chart

Mixer→Screw Conveyor→Extruder→Air Conveyor→Dryer→Hoister→Flavoring System→Cooling Conveyor

7.Product Advantages

1.Adopt Siemens main motor, Delta inverter, Schneider Omron ABB electrical components, the world's top brands, efficient and stable operation, reliable quality, durable, global accessories, can be directly purchased locally, effectively reducing production cost.

2. The screw material is high-speed alloy steel, carburized, with hardness up to HRC 55-65, high wear resistance, high hardness, good toughness, optional 38CrMoAl, 12CrMoV, W6Mo5Cr4V2 material, long service life. Some models are equipped with a combination screw, which has wider applicability of raw materials. The screw combination method can be adjusted according to different products, and one machine can be used for multiple purposes.

3.The main motor, rotary cutting motor and feeding motor are all controlled by frequency conversion, which can realize soft start and effectively protect the motor, and can adjust the speed according to the product status to produce higher quality products; equipped with PLC touch screen control system, equipment temperature and The speed adjustment is more digital and the control is more precise.

4.Using a new type of box, the box material QT400, good stability. Gear material 20CrNiMoA, carburizing and quenching, hardness HRC58-62, high precision, low noise, long service life; using Japanese NSK, SKF bearings, high precision, long life, stable performance; oil pump motor, forced internal circulation lubrication; condenser, lower The surface temperature of gears and bearings increases the service life; the filter cleans the impurities in the oil, improves the lubrication effect and prolongs the service life.

5. According to the actual situation, different energy sources, electricity, fuel oil, gas, steam can be used to save production costs; equipped with circulating fans and dehumidification fans to promote heat circulation, remove water vapor, and improve drying efficiency; 304 stainless steel mesh cloth and mesh are used. belt to ensure product quality; adjustable running speed, adjust drying time according to different products, high efficiency.
