Soy Protein Making Machine

Lead Time: 15-25 days

Materials: stainless steel 304

Voltage: Customized, 110v-440v,50-60hz.

Core Components Brand: Siemens,Delta, Schneider, Baltur

Shipping: Support to sea freight, land and air freight

Service:

1 One year warranty, lifetime service

2 Local engineer on-site service available within 14 working days


  Contact Now
Product Details

Soy Protein Making Machine


1.Introduction

Tvp/tsp is a fibrous plant protein with a texture just like muscle fiber shaped through the producing and processing of plant protein with unique technology.

Tvp/tsp can be brought to meat merchandise in vicinity of chicken and protein isolate. it can not simplest growth the protein content of meat products, but additionally soak up excess fat, making it non-greasy and non-greasy and extra meaty, carrying out for your price variety motive.

Raw substances are at the whole processed soybean products, inclusive of defatted soybean meal, protein concentrate, protein isolate, gluten, and so on.


2.Production video

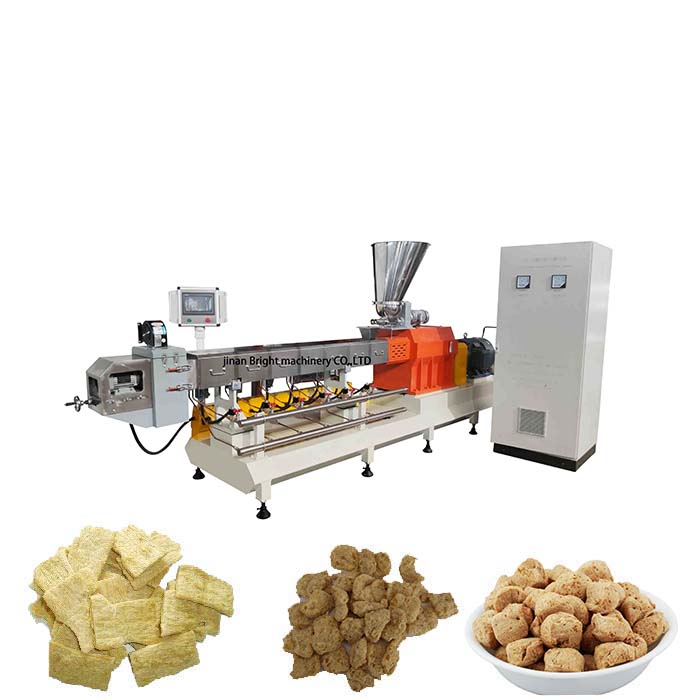

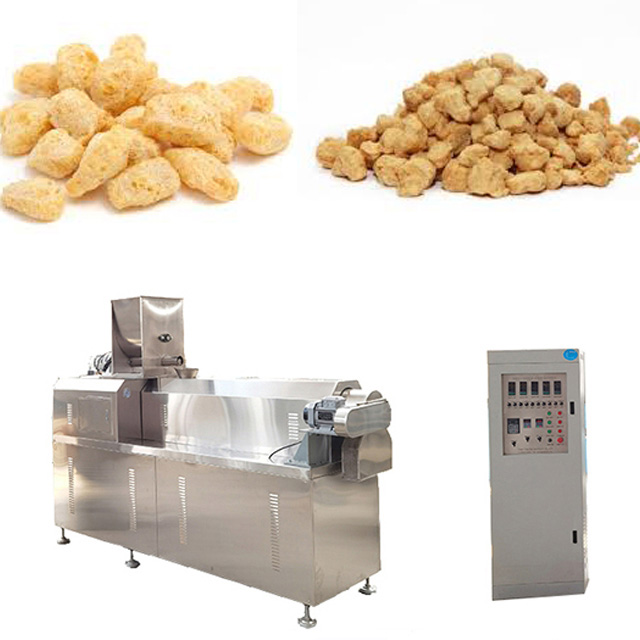

3.Machine display



4.Samples

TVP Soy Protein Machine.jpgTVP Soy Protein Machine.jpg TVP Soy Protein Machine2.jpgTVP Soy Protein Machine.jpg


TVP Soy Protein Machine.jpgTVP Soy Protein Machine.jpg TVP Soy Protein Machine.jpgTVP Soy Protein Machine.jpg


5.Technical parameter

Model

Capacity/output

Installed Power

Power Consumption

Dimension

DSE65 Soy Protein Production Line

200-250kg/h

116kw

93kw

20*3*2.2m

DSE65F Soy Protein Production Line

200-300kg/h

134kw

107kw

24*3*2.2m

DSE77 Soy Protein Production Line

300-400kg/h

158kw

126kw

26*3*2.2m

DSE75F Soy Protein Production Line

300-500kg/h

178kw

143kw

30*3*2.2m

DSE85 Soy Protein Production Line

400-500kg/h

210kw

168kw

36*3*2.2m


6.Flow chart

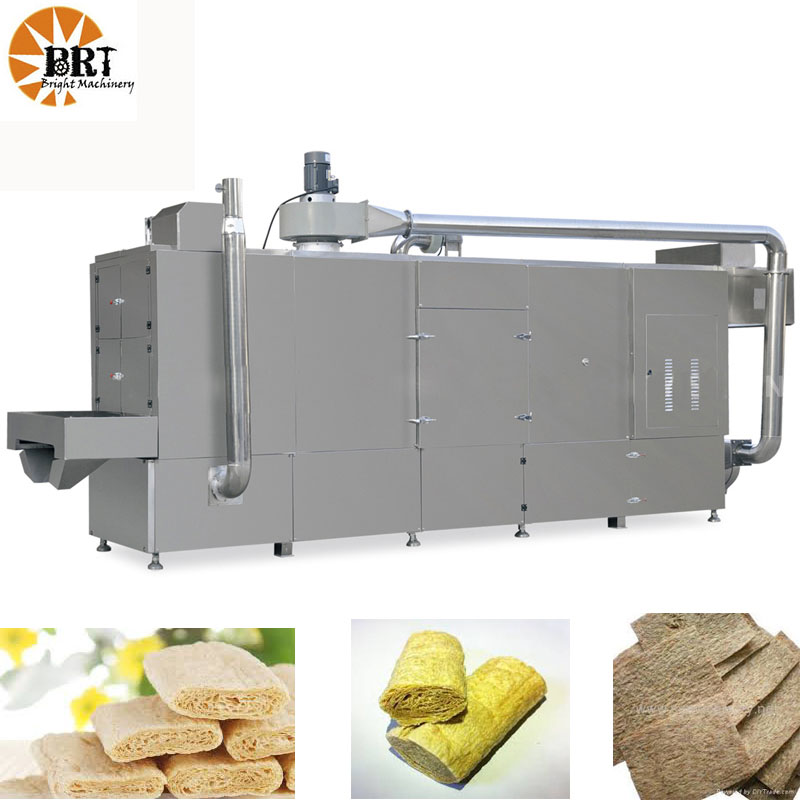

Feeder Nose→Dust Collector→Bucket Elevator→Permanent Magnetic Drum→Bucket Elevator→Silo→Milling Machine Group→Bucket Elevator→Silo→Mixer→Bucket Elevator→Silo→Double Screw Extruder→Conveyor→Cutter→Hoister→Dryer→Hoister→Cooler→Sifter→Hoister→Packing Machine

Flow chart.jpg


7.Product advantages

The twin-screw extruder for TVP/TSP soya protein is a continuous, high-temperature, high-pressure, and short-term sterilization process. It is a processing method that integrates multiple processing procedures. Compared with the traditional production process, the twin-screw extruder produces Soy protein has the following characteristics:


1. It can modify protein molecules to form a new cross-linked and layered fiber structure, and has good rehydration and oil retention performance; it can decompose protein, which is easy to digest and absorb, and its nutritional value is improved.


production of TVP Soy Protein Machine .jpg TVP Soy Protein Machine.jpg TVP Soy Protein Machine's Production.jpg TVP Soy Protein Machine's Production.jpg


2. Short production process, low production cost, high output, energy saving and high efficiency, simple equipment supporting, small footprint, convenient operation, no sewage and waste gas generation, environmental protection and low carbon.


3. Optional Delta or Siemens brand PLC control system, more accurate and convenient


TVP Soy Protein Machine.jpg TVP Soy Protein Machine.jpg TVP Soy Protein Machine.jpg TVP Soy Protein Machine.png


4. Modular screw with building block structure effectively reduces replacement cost.  Screw material is 38CrMoV or 12CrMoV, strong and durable


TVP Soy Protein Machine.jpg TVP Soy Protein Machine.jpg TVP Soy Protein Machine.jpg TVP Soy Protein Machine.jpg


5.  Famous brand electrical parts, safe and reliable, NSK or SKF brand bearing, long working life, low noise


TVP Soy Protein Machine.jpg TVP Soy Protein Machine.jpg TVP Soy Protein Machine.jpg TVP Soy Protein Machine.jpg
